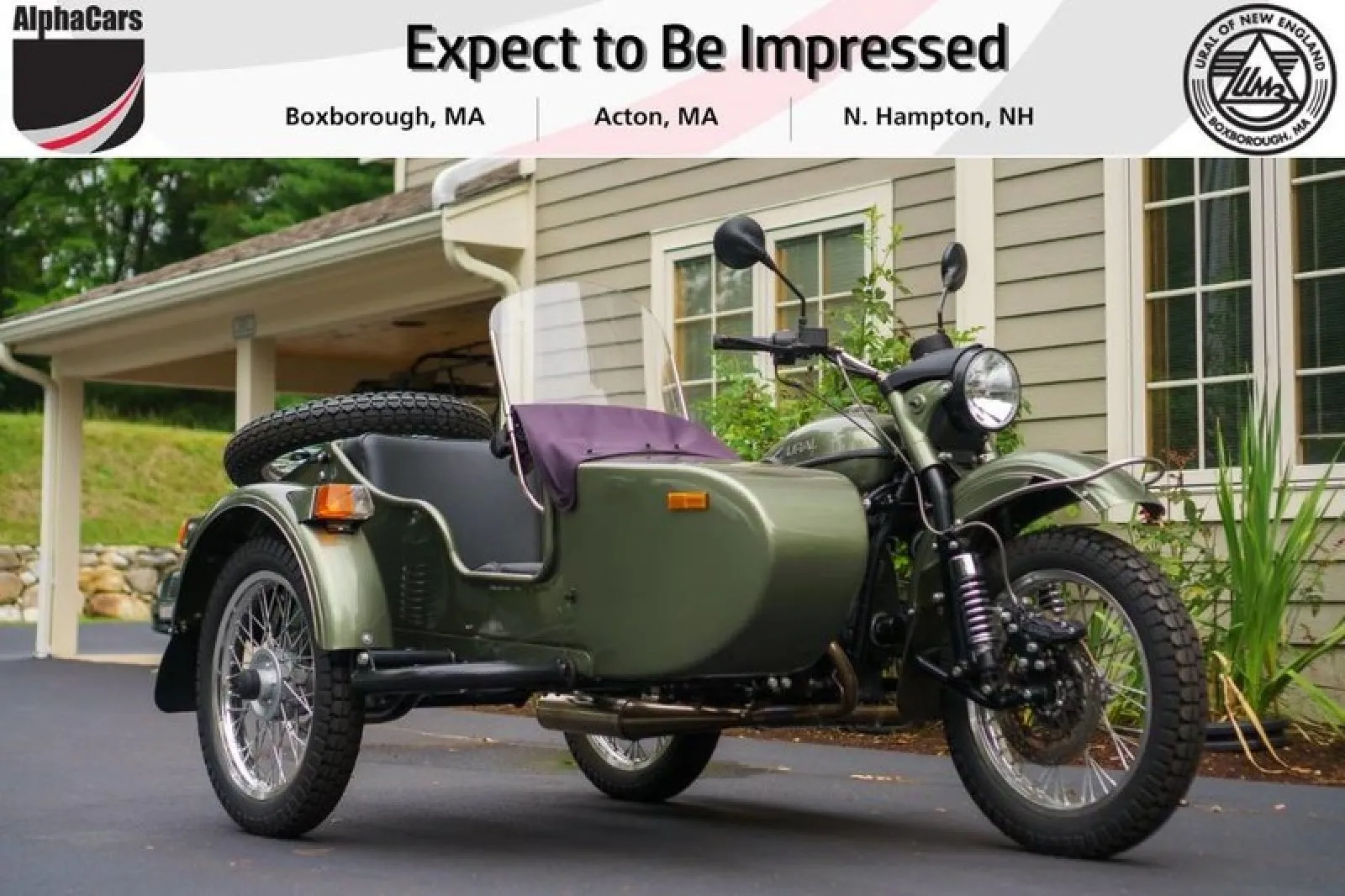

2015 Ural 750

978-263-9000 uralne.com

Written by Ural of New England, please do not duplicate.

For 2015, the Patrol 2WD comes in three gorgeous Metallic colors - Grey, Green, and Burgundy Metallic. Unlike the Gear Up 2WD that comes in a flat powder coated finish and black powder coated trim, the Patrol 2WD is all about shine and reflections - it comes with a beautiful glossy liquid finish and polished stainless steel trim!

In addition to the famous 2WD system, reverse gear, parking brake, and hydraulic steering damper, the Patrol includes great features that are aimed for durability and comfortable touring for three:

• Glossy liquid finish on body panels
• Powder coated bike frame
• Polished stainless steel trim
• Seating for rear passenger with bench seat, foot pegs, and handlebars
• Power distribution panel in the sidecar with 12V outlet & additional power circuits
• Gas tank with rubber kneepads
• Spare wheel assembly
• Water resistant tonneau cover
• Folding sidecar windscreen with apron
• Comprehensive tool kit
• Paint touch up for body color and frame
• Hand pump

Another desirable customization that we offer on this motorcycle is a black powder coated drivetrain, which includes the engine, transmission, and final drive. This optional feature is the only reliable protection of otherwise exposed aluminum surfaces from moisture, snow, salt and mud.

$15,599 MSRP for 2015 Ural Patrol
$ 595 Cost of crate delivery to dealership
$ 975 Assembly & Setup
$ 999 Black powder coated drivetrain
-----------
$18,168

Work with a knowledgeable and reputable team of professionals at Ural of New England. Expect To Be Impressed! We appreciate your business and will gladly handle your motorcycle transaction with NO ADDITIONAL FEES. Give us a call and see how buying a motorcycle can be an enjoyable and fun experience! We gladly offer vehicle transportation arrangements through a network of insured and reliable shippers. Use your imagination and accessories from our eStore to customize this motorcycle!

SPECIFICATIONS:

2015 Ural Updates:

• Headlight with replaceable bulb
• Universal spare wheel that fits all wheels of the bike
• Redesigned rear brake pedal for more comfortable foot placement

Engine and Transmission

• Displacement, cc: 749
• Engine type: OHV air cooled 2 cylinder 4 stroke “boxer” (flat twin)
• Valve per cylinder: 2
• Bore and stroke (mm x mm): 78 x 78
• Max output (hp): 41 @ 5500 rpm
• Max torque (ft-lbs): 42 @ 4300 rpm
• Compression: 8.6:1
• Fuel system: Throttle body EFI
• Starting: Electric & Kickstart
• Clutch Double-disc dry
• Transmission type: Manual
• Speeds: 4 forward 1 reverse
• Primary drive (rear wheel): Driveshaft
• Final drive ratio: 4.62
• Engageable sidecar wheel drive: Yes, driveshaft

Physical Measurements

• Overall length, inch.: 98.8
• Overall heights, inch.: 54.3
• Overall width, inch.: 63.6
• Seat height, (unladen), inch.: 32.0
• Ground clearance (unladen),inch.: 6.8
• Dry weight, lbs: 730

Electrical

• Alternator: Denso, Peak Output 40 Amp @ 14vdc, 560 Wt
• Battery: FAYTX20HL (12V, 20A)
• Headlight: H4
• Spark plugs: NGK BPR6HS

Chassis

• Front suspension: IMZ leading link fork
• Rear suspension: Double swing-armwith two 5X adjustable Sachs shocks
• Sidecar suspension: Single swing-arm with 5X adjustable Sachs shock
• Wheels: 2.5X19 Aluminum rims with steel spokes
• Tires: Duro HF-308, 4.0×19″
• Front brake: 4-piston fixed Brembo caliper with 295mm floating NG rotor
• Rear brake: HB big bore integrated floating caliper with 256mm fixed NG rotor
• Sidecar brake: 2-piston fixed Brembo caliper with 245mm floating NG rotor

Miscellaneous

• Fuel grade: 91 Octane, unleaded
• Fuel tank capacity, gallons: 5.0
• Reserve, gallons: app. 1
• Estimated fuel economy, mpg: 31-37
• Estimated range, miles: 155-185
• Recommended max cruising speed, mph: 70
• Max permissible weight, lbs:1325
• Trunk volume, cubic ft.: 2.9

Warranty

• 2-years parts and labor unlimited mileage
• Optional third year extension
