2016 Ural

978-263-9000 uralne.com

Written by Ural of New England, please do not duplicate.

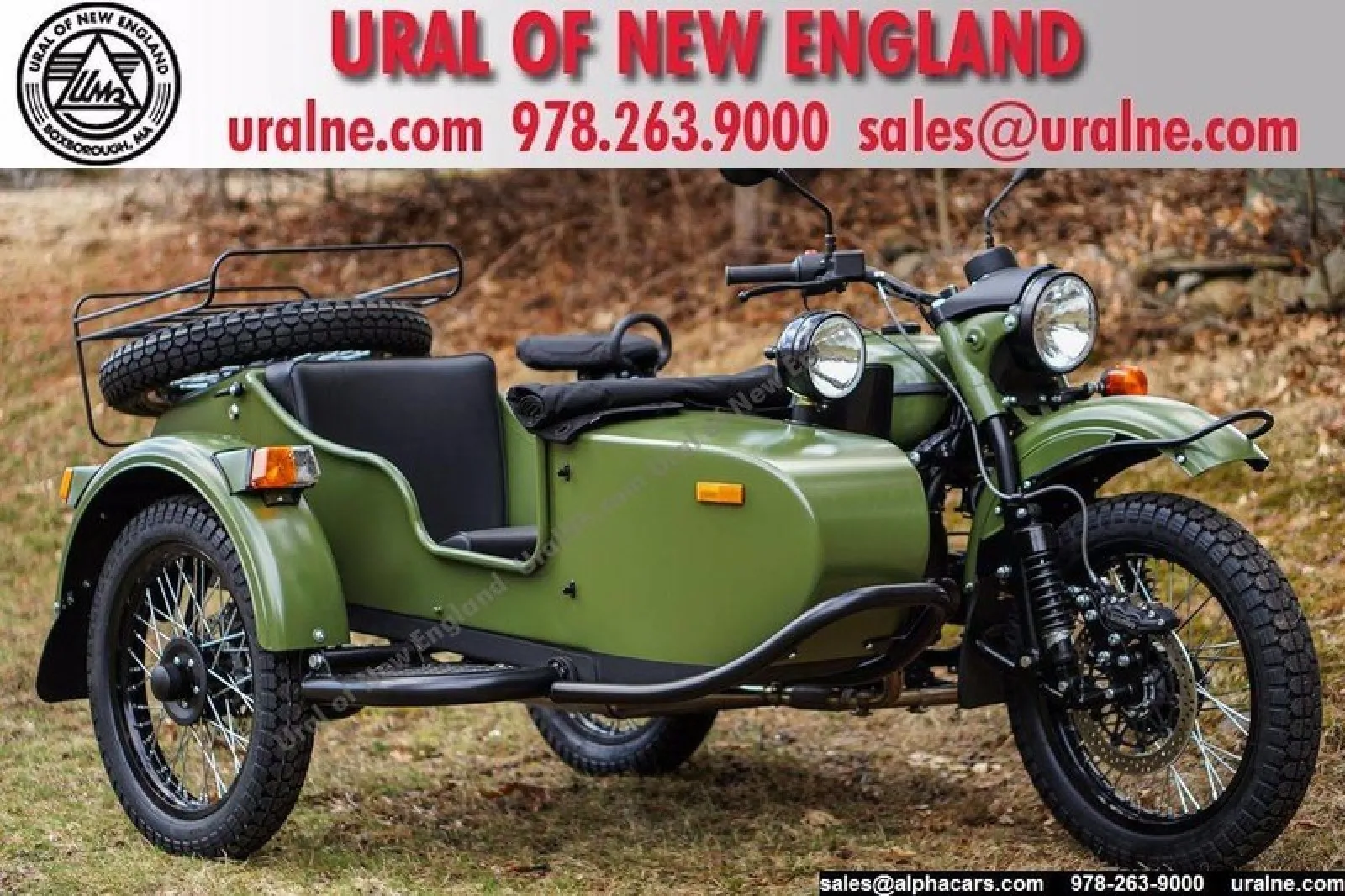

Premium, dual-sport, 2WD model. Taiga coated body with a flat black coated finish on the motorcycle frame. Hubs on all wheels are also powder coated. The 2016 Ural Gear Up is the most equipped stock model.

The Gear Up is the most equipped Ural model. In addition to the famous 2WD system, reverse gear, parking brake, and hydraulic steering damper, the Gear Up includes a long list of on- and off-road specific features:

• Liquid coated finish on body panels
• Liquid coated bike frame
• Liquid coated trim
• Powder coated sidecar bumper
• Power distribution panel in the sidecar with 12V outlet & additional power circuits
• Spotlight on the front of the sidecar
• Gas tank with an integrated tool box and rubber kneepads
• Shin guards
• Spare wheel assembly
• Padded Cordura seat cover for the rider
• Luggage rack over the spare wheel
• Water resistant tonneau cover
• Fluid canister
• Shovel
• Comprehensive tool kit
• Paint touch up for body color and frame
• Rear fender luggage rack
• Hand pump

It comes in a durable Taiga Liquid Coated finish with desirable black powder coated drivetrain, which includes the engine, transmission, and final drive. This feature is the only reliable protection of otherwise exposed aluminum surfaces from moisture, snow, salt and mud.

When it comes to protection from the elements, it gets even better on this Gear Up. The underbody surfaces are wrapped in factory-applied rubberized undercoating. This durable finish is applied to the under-side of the sidecar body, and all three fenders of the motorcycle.

In addition, installed is a partial rear-seating package that includes rear handlebars and rear foot pegs. Optional rear seat or a cushion for existing rear fender rack can easily be installed for additional seating.

$15,999 MSRP for 2016 Ural Gear Up
$ 625 Cost of crate delivery to dealership
$ 975 Assembly & set up for premium 2WD model
$ 999 Custom Color (Taiga)
$ 999 Black Powder Coated Drivetrain
$ 600 Weatherproof undercoating
$ 179 Partial Rear Seating Package
----------
$20,376

The following options are shown in the photos but are NOT included in the listed price:
$ 361 Rear Tractor Seat with Cordura Cover

Work with the knowledgeable and reputable team of professionals from Ural of New England. Expect To Be Impressed! We appreciate your business and will gladly handle your vehicle purchase with NO ADDITIONAL FEES. Give us a call and see how buying a motorcycle can be enjoyable and fun! We offer vehicle transportation arrangements through a network of insured and reliable shippers. Use your imagination and accessories from our eStore to customize this bike even more!

SPECIFICATIONS

2016 Model Updates

• New starter motor.
• Introduction of compressible fiber-aluminum gaskets to seal exhaust head pipes.
• Hydraulic brake switch.
• Modified wire harness.
• Modified throttle bodies and flanges.
• Gas tank with the fuel sensor baffle.
• Modified hydraulic dampener with increased stiffness and sealing.
• New trunk lid weather strip.
• New design of the oil deflector for the breather for 2WD models.
• Use of liquid paint on all body parts.

Engine and Transmission

• Displacement, cc: 749
• Engine type: OHV air cooled 2 cylinder 4 stroke “boxer” (flat twin)
• Valve per cylinder: 2
• Bore and stroke (mm x mm): 78 x 78
• Max output (hp): 41 @ 5500 rpm
• Max torque (ft-lbs): 42 @ 4300 rpm
• Compression: 8.6:1
• Fuel system: Throttle body EFI
• Starting: Electric & Kickstart
• Clutch Double-disc dry
• Transmission type: Manual
• Speeds: 4 forward 1 reverse
• Primary drive (rear wheel): Driveshaft
• Final drive ratio: 4.62
• Engageable sidecar wheel drive: Yes, driveshaft

Physical Measurements

• Overall length, inch.: 98.8
• Overall heights, inch.: 54.3
• Overall width, inch.: 63.6
• Seat height, (unladen), inch.: 32.0
• Ground clearance (unladen),inch.: 6.8
• Dry weight, lbs: 730

Electrical

• Alternator: Denso, Peak Output 40 Amp @ 14vdc, 560 Wt
• Battery: FAYTX20HL (12V, 20A)
• Headlight: H4
• Spark plugs: NGK BPR6HS

Chassis

• Front suspension: IMZ leading link fork
• Rear suspension: Double sided swing-arm with two Sachs hydraulic spring shock absorbers
• Sidecar suspension: Single sided swing-arm with Sachs hydraulic spring shock absorber
• Wheels: 2.5X19 Aluminum rims with steel spokes
• Tires: Duro HF-308, 4.0×19″
• Front brake: 4-piston fixed Brembo caliper with 295mm floating NG rotor
• Rear brake: HB big bore single piston integrated floating caliper with 256mm fixed NG rotor
• Sidecar brake: 2-piston fixed Brembo caliper with 245mm floating NG rotor

Miscellaneous

• Fuel grade: 91 Octane, unleaded
• Fuel tank capacity, gallons: 5.0
• Reserve, gallons: app. 1
• Estimated fuel economy, mpg: 31-37
• Estimated range, miles: 155-185
• Recommended max cruising speed, mph: 70
• Max permissible weight, lbs:1325
• Trunk volume, cubic ft.: 2.9

Warranty

• 2-years parts and labor unlimited mileage
• Optional 3rd year available
